How Garage Door Safety Sensors Work

Every garage door opener installed since 1993 is required by federal law to include an automatic reversal system. The standard is known as UL 325, published by Underwriters Laboratories, and it mandates that residential garage door openers detect an obstruction and reverse before the door can cause injury or property damage.

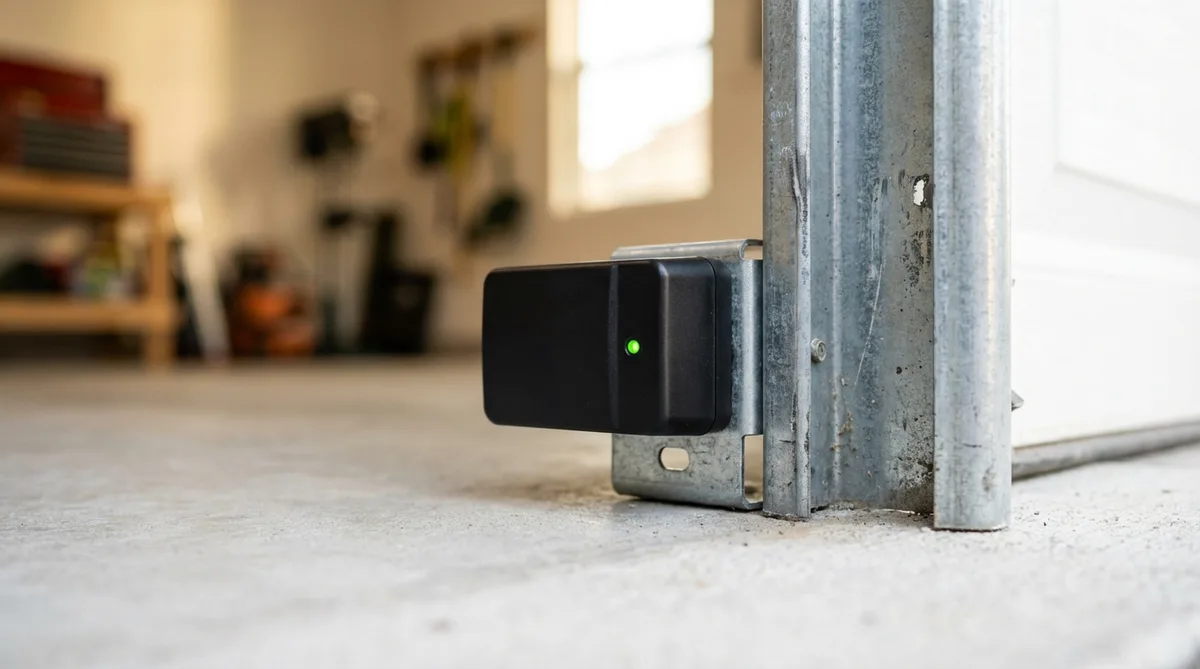

The most common implementation of this requirement is the photo-eye sensor system. Two small sensor units are mounted on the door tracks, typically 4 to 6 inches above the floor. One unit — the sender — continuously emits an invisible infrared beam. The other unit — the receiver — sits directly across the opening and monitors that beam. When the beam is intact, the door is allowed to close normally. The moment something breaks the beam — a child, a pet, a bicycle left in the way — the opener immediately reverses.

Each sensor has a small LED indicator light that tells you its status at a glance. A solid green light on the receiver means the beam is aligned and the circuit is complete. A solid amber or yellow light on the sender confirms it is transmitting. If either light is off, blinking, or showing the wrong color, your opener will refuse to close the door — and rightly so. That refusal is the safety system doing exactly what it is designed to do.

Understanding this system is the first step to diagnosing why your door is not cooperating. In most cases, the problem is not the opener itself but one of these two small, inexpensive sensors.

What We Repair

Common Garage Door Sensor Problems

Sensor Misalignment

The most common sensor problem in Ogden homes. Sensors can be knocked out of alignment by a bumped trash can, a brush from a vehicle door, or gradual vibration from daily use. When the sender and receiver are even slightly off-axis, the infrared beam is broken and your door will not close. A misaligned sensor typically shows a blinking or off LED on the receiver side. Realignment is often a quick fix, but the sensor mounting bracket sometimes needs adjustment or replacement to hold the corrected angle.

Dirty or Obstructed Lenses

The sensor lenses are small and sit low to the ground, which makes them magnets for dust, cobwebs, and grime in a typical Weber County garage. A film of dirt thick enough to scatter the infrared beam will trigger the same response as a physical obstruction — the door reverses or refuses to close. Seasonal debris and insects building nests over the lenses are also surprisingly common causes. A careful cleaning with a soft, dry cloth often resolves the issue without a service call, but if the lenses are scratched or cracked, replacement is needed.

Wiring Damage

The low-voltage wiring that connects each sensor to the opener head unit runs along the wall and ceiling of your garage. Rodents chewing through insulation, staples driven too aggressively during installation, door track vibration wearing through insulation over time, and general moisture exposure in an unheated garage are all common causes of wiring failure along the Wasatch Front. A damaged wire can cause intermittent sensor failure that seems random and is frustrating to trace. We carry wire, connectors, and sensor units on our trucks to repair or replace damaged runs on the spot.

Sun Interference

Bright afternoon sunlight shining directly into the receiver sensor can overwhelm its photodetector and mimic a broken beam. This is a well-known issue in garages that face west or southwest — common in many Ogden and Roy neighborhoods given the orientation of streets in Weber County. The problem typically appears only in the late afternoon during certain seasons. Solutions range from repositioning the sensors slightly to adding a small sun hood over the receiver lens. We can diagnose whether sun interference is your issue and implement a lasting fix.

LED Indicator Failures

When a sensor's indicator light is completely dark, the unit may have lost power due to a loose wire connection at the sensor terminal, a failed internal component, or a fault on the opener's logic board that controls the sensor circuit. A dead LED does not always mean the sensor itself is broken — the wiring connection at the back of the unit or at the opener terminal strip is often the culprit. We test the full circuit before replacing hardware to avoid unnecessary parts costs.

Complete Sensor Failure

Sensor units do eventually fail from age, impact, or moisture intrusion. Modern safety sensors for most major opener brands — LiftMaster, Chamberlain, Genie, and Craftsman — are inexpensive and straightforward to replace. We stock compatible sensor sets on our trucks and can swap failed units quickly, ensuring your replacement sensors are correctly wired, aligned, and tested before we leave.

Self-Help Guide

Troubleshooting Your Garage Door Sensors

Before calling a technician, there are a few things you can check yourself. Many sensor problems have simple causes that take only a few minutes to address.

1

Read the Indicator Lights

Walk to the sensors and look at the LED lights. The sender (typically on the left as you face the door from inside) should show a solid amber or yellow light. The receiver should show a solid green light. If either light is blinking or off, you have found the problem side. A blinking green light almost always means misalignment. A completely dark light points to a wiring or power issue.

2

Clean the Lenses

Use a clean, dry, soft cloth — a microfiber cloth works well — to gently wipe the face of each sensor. Do not use cleaners, solvents, or abrasives. You are just removing dust, cobwebs, and grime. After cleaning, check whether the indicator lights return to their normal solid state. If they do, try closing the door.

3

Check for Obstructions

Look along the full path of the infrared beam from sensor to sensor. A rake handle leaning against the wall, a box that has shifted, or even a large spider web directly in the beam path is enough to trigger the safety circuit. Clear anything within a few inches of either sensor and the path between them.

4

Check Wiring Connections

Follow the wires from each sensor up to the opener head unit and inspect for obvious breaks, loose connections, or places where the wire appears pinched or chewed. At the opener, confirm the wires are seated firmly in the terminal strip. Loose terminal connections are a common cause of intermittent sensor failures that seem random and hard to reproduce.

When these steps do not resolve the issue, the problem is likely a damaged sensor unit, a wiring fault inside the wall, a sun interference issue, or a logic board problem that requires professional diagnosis. Call us at 385-333-7921 and we will send a technician to your Ogden home the same day.

Technician inspecting garage door safety sensor wiring in Ogden

Our Process

How We Repair Your Garage Door Sensors

1

Diagnose

We inspect both sensor units, check LED indicator lights, test the infrared beam alignment, examine wiring runs from sensor to opener for damage, and verify the opener's safety circuit. We identify the exact cause before recommending any work.

2

Quote

You receive upfront pricing before any work begins. Whether it is a simple alignment, a wiring repair, or a complete sensor replacement, you will know the exact cost with no surprises and no hidden fees.

3

Repair

Our technician realigns, rewires, or replaces the sensors and confirms the full safety circuit is functioning correctly before leaving. Most garage door sensor repairs in Ogden are completed in under an hour, restoring safe door operation the same day.

Garage Door Sensor Repair FAQ

Why won't my garage door close all the way?

The most likely cause is a safety sensor issue. When the photo-eye sensors are misaligned, dirty, or obstructed, your opener detects a problem with the safety circuit and refuses to close the door as a precaution. Look at the sensor LEDs near the floor on each side of the door opening. If either light is off or blinking, the sensor is the culprit. Other possible causes include an out-of-adjustment close limit switch or an obstruction in the door's travel path, but faulty sensors account for the majority of "won't close" calls we receive in Ogden.

How much does garage door sensor repair cost in Ogden?

Sensor repair in Ogden typically ranges from $75 to $200 depending on what is needed. A simple alignment or cleaning on the lower end, wiring repair in the middle range, and a complete sensor replacement set toward the higher end. Sensor hardware is inexpensive — a matched pair of photo-eye sensors for most major brands costs $20 to $50. Labor is the larger part of the cost. We provide a free on-site estimate so you know the exact price before we start any work.

Can I bypass the garage door sensors?

Technically yes — most openers allow you to hold the wall button continuously to force the door closed even when sensors are faulting. However, we strongly advise against bypassing or permanently disabling your safety sensors. The UL 325 federal standard requires them for a reason: they have prevented countless injuries and fatalities since their mandate in 1993. A door that closes without a functioning safety circuit is a genuine hazard to children, pets, and property. Sensor repairs are affordable and fast — call us and we will have your sensors working correctly the same day.

Why do my garage door sensors keep going out of alignment?

Repeated misalignment usually points to a loose mounting bracket, a warped or damaged track in that area of the door frame, or regular physical contact from items stored near the sensor. The sensor bracket wings that allow adjustment can loosen over time from door vibration. In some cases, the mounting wing itself is bent and needs replacement to hold the sensor at the correct angle reliably. We check the bracket hardware during every sensor service call and tighten or replace components as needed so the alignment holds long-term.

My garage door reverses right before it hits the floor — is that a sensor problem?

Not necessarily. A door that reverses just before touching the floor is more likely a close-limit or down-force adjustment issue on the opener itself rather than the photo-eye sensors. The sensors only prevent closure from a height — once the door is already near the floor, a different safety mechanism (the mechanical pressure reversal) is in play. That said, we check the full safety system during every visit, including sensors, limit settings, and mechanical reversal sensitivity, to make sure everything is calibrated correctly.

Are garage door safety sensors required by law?

Yes. Since January 1, 1993, UL 325 has required that all residential garage door openers sold in the United States include an entrapment protection system — the photo-eye sensor is the standard implementation. If your home was built after 1993, your opener should have sensors already installed. Older homes with original pre-1993 openers may lack them entirely, which is a safety concern worth addressing. We can inspect your system and advise whether an upgrade is warranted.
